What are HDPE Pipes?
Definition and Overview

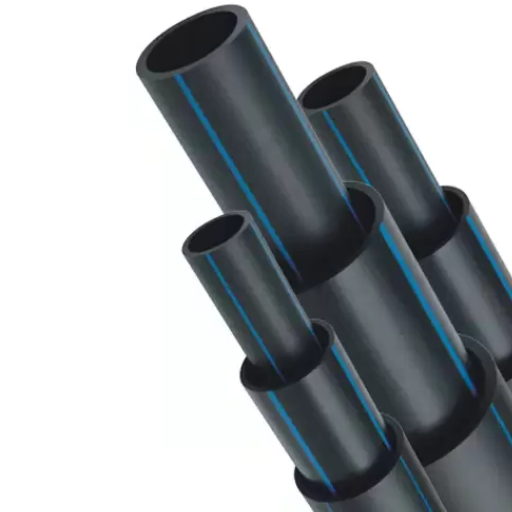

High-Density Polyethylene (HDPE) pipes are robust, flexible, and highly versatile thermoplastic pipes made from petroleum. Known for their strength-to-density ratio, HDPE pipes are widely used in numerous applications, including water distribution, gas piping, industrial fluid systems, and sewage transport. Their durability and resistance to corrosion make them an ideal choice in environments prone to wear and tear or chemical exposure.
One of the primary characteristics of HDPE pipes is their ability to handle high pressure and a wide range of temperatures, ensuring performance stability in both urban and rural infrastructure. They exhibit exceptional resistance to cracking, impacts, and ultraviolet radiation, making them suitable for outdoor and underground installations. Additionally, HDPE pipes are chemically inert, reducing the risk of reactions with transported substances, which is crucial for water safety and industrial use cases.
HDPE pipes are often regarded for affordability and ecological relevance. Also, having a lightweight, this reduces transportation costs and retains recycling-based goals of sustainability. Seamless by profile, and together with modern fusion technologies, their leakage is kept to a minimum, maximizing system efficiency and guaranteeing long-term reliability of piping networks employed in a variety of sectors.
Unique Properties of HDPE Pipes
Key Properties:
- Outstanding Durability: Resistance to corrosion, abrasion, and chemical attacks
- High Flexibility: Can bend under pressure without cracking
- Impact Resistance: Superior performance in earthquake-prone zones
- Hydraulic Efficiency: Smooth internal surfaces reduce friction
- Environmental Sustainability: Recyclable material with long durability
HDPE pipes show outstanding durability as a result of their resistance to corrosion, abrasion, and chemical attacks. They can withstand exposure to harsh substances or adverse weather conditions. This resilience in challenging environments guarantees that the pipes will show no degradation with time, whether it be iin ntense industrial settings or prolonged agricultural use.
An important feature of HDPE pipes is their flexibility and high impact resistance. HDPE pipes can bend under pressure and still not crack, unlike rigid piping materials. So, they can be laid in areas with shifting soils or in earthquake-prone zones. This flexibility reduces the chances of failures and also makes installation much easier, especially when trenchless methods such as directional drilling or pipe bursting are chosen.
Common Applications of HDPE Pipes
Water Supply Systems
HDPE pipes are more popularly used for transporting potable water due to considerations of non-toxic material, corrosion resistance, and good hydraulic properties. Studies have shown leakage reduction of up to 50% compared to other pipe materials.
Sewage and Drainage Systems
Chemical resistance makes HDPE pipes especially suitable for sewage and wastewater systems. Their flexibility allows installation even in mature terrains, while abrasion resistance provides longer life for handling gritty or acidic waste streams.
Gas Distribution Networks
Lightweight and sturdy option for gas pipelines and natural industrial distribution. HDPE gas pipes have been proven to serve for up to 50 years under ideal conditions.
Irrigation and Agricultural Applications

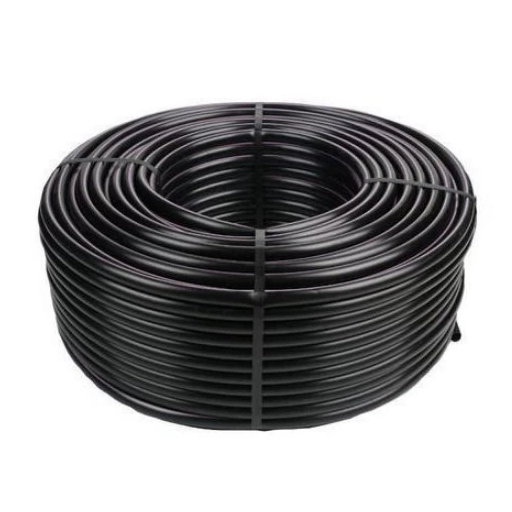

Resistant to UV rays and easy to install due to flexibility across uneven terrains. Research states that irrigation with HDPE pipe systems can promote water efficiency by 40%.
Industrial Fluids and Chemicals
Used in industries to transport chemicals, slurries, and other industrial fluids. Smooth inner surfaces prevent blockage and provide even flow for demanding industrial processes.
HDPE Pipe Sizes and Specifications
Variations in HDPE Pipe Sizes

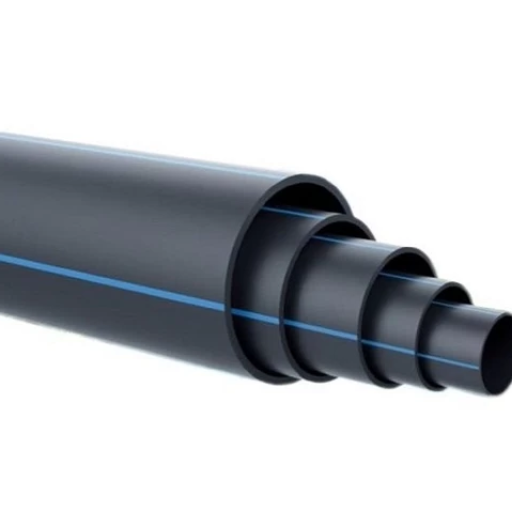

HDPE pipes are manufactured in a wide range of sizes to meet various industrial and infrastructural requirements. Sizes generally range from small diameter selections, as small as ½-inch, to large diameters exceeding 65 inches.
| Size Range | Applications | Typical Use |
|---|---|---|
| ½” – 4″ | Residential plumbing, small irrigation | Household water supply |
| 6″ – 24″ | Municipal water distribution | City water mains |
| 30″ – 65″ | Industrial applications | Large-capacity transport |
HDPE pipe sizes are standardized by their nominal diameter, thickness of the wall, and pressure rating, which are typically given by a standard named the Standard Dimension Ratio (SDR). SDR is the operative factor, a sort of ratio between the pipes’ outside diameter and their wall thickness, determining their suitability to pressure.
Pressure Ratings and Material Composition
Common Pressure Ratings:
- PN6: 6 bar maximum operating pressure
- PN10: 10 bar maximum operating pressure
- PN16: 16 bar maximum operating pressure
Pressure ratings for HDPE pipes are one of the important factors in establishing their suitability for particular applications. These pressure ratings are defined by pressure classes or nominal pressures, indicating the maximum pressure within which the pipe can sustain until the end of its expected life, usually for 50 years.
| Material Grade | Properties | Applications |
|---|---|---|
| PE63 | Basic grade polyethylene | Low-pressure applications |
| PE80 | Improved strength and flexibility | Medium-pressure systems |
| PE100 | Highest strength, crack resistance, and density | High-pressure gas and water transmission |
Advantages of HDPE Pipes Over Traditional Materials
Durability and Flexibility
HDPE pipes are considered highly reliable where difficult applications due to their durability. Being made of HDPE, they are resistant to impact damage, stress cracking, and chemical corrosion, all of which tend to threaten the integrity of conventional-type pipes like steel, PVC, or concrete.
Because of their hardness and durability, HDPE pipes are flexible and adaptable to different types of installation situations. Unlike rigid pipe materials, HDPE pipes can bend around curves or contour in the terrain, reducing jointing or complex installations.
Resistance to Corrosion
HDPE pipes, under ideal resistance to corrosio,n are chosen for applications in aggressive environments. Unlike piping systems made out of metals, HDPE piping systems do not rust or corrode—even when exposed or in contact with moisture and chemicals for very long periods.
The molecular structure of HDPE contributes to its superior corrosion resistance. HDPE is a thermoplastic polymer characterized by long chains of ethylene molecules, which form a highly stable and inert composition. This stability ensures that the material does not react with most chemicals or environmental elements, including acids, alkalis, and reactive gases.
Cost-Effectiveness
Materials properties, installation costs, and the cost of total life are factors considered in calculating HDPE pipes’ cost-effectiveness. Being lightweight, HDPE cuts out transportation and handling costs, which in turn facilitates installation and thus enables accelerated project completion.
Cost Benefits:
- Lifecycle cost savings typically exceed 25% over several decades
- Reduced transportation and handling costs due to lightweight
- Minimal maintenance requirements
- Extended service life of 50-100 years
- Reduced leakage-related costs in water distribution systems
Installation Guidelines for HDPE Pipes
Preparation for Installation
- Site Survey: Thorough examination to identify hazard situations, soil conditions, and existing underground utilities
- Material Inspection: Check HDPE pipes and fittings for physical defects, scratches, deformation, or contamination
- Equipment Check: Ensure all necessary tools and fusion machines are calibrated according to the manufacturer’s specifications
- Trenching: Carry out according to detailed engineering drawings specifying depth and layout
Fusion Techniques for Joining Pipes
| Fusion Method | Description | Best Used For |
|---|---|---|
| Butt Fusion | Pipe ends are heated to the melt state and pressed together under controlled pressure | Straight pipe connections are, most common method |
| Electrofusion | Special fittings with electric heating elements fuse pipe, and a fitting | Cramped spaces, joining pipes of different wall thicknesses |
| Saddle Fusion | Saddle fitting and pipe contact area are heated simultaneously | Branch connections or outlets on existing pipes |
Best Practices for Longevity
- Select high-quality materials that comply with industry standards
- Use correct installation methodology with perfect alignment
- Implement rigorous inspection and testing during installation
- Schedule regular maintenance, including cleaning and performance monitoring
- Use stress reducers such as expansion loops or flexible joints
Industry Standards and Certifications
Overview of Relevant Standards
The importance of industry standards is immense, especially when products like pipes are considered to be installed safely, efficiently, and with sustainability. The ASME-B31 pipeline codes are probably the most comprehensive standards adopted internationally for viability in pipeline design, materials, construction, inspection, and testing.
Key Standards:
- ASME B31.3: Process Piping
- ASME B31.4: Pipeline Transportation System for Liquids and Slurries
- ISO 13623: General requirements for pipelines for natural gas and liquid petroleum
- ISO 4427: HDPE pipe pressure ratings and specifications
- API 1169: Pipeline construction and inspection personnel certification
- ASTM Standards: Material specifications and testing methods
Importance of Compliance
Compliance forms the bedrock of pipeline integrity, safety, and efficiency. Adherence to standards and regulations ensures that all operational activities conform to federal, state, and industry-based requirements. Failure to comply may lead to penalties, operational downtime, or environmental crises.
Modern monitoring systems, data analytics, and inspection automation are used in compliance processes, all of which ensure verification accuracy and minimize human error. They help detect deviations in real-time, prepare proactive maintenance schedules, and generate reports required for quick response and risk management.
