HDPE Pressure Pipe: The Ultimate Guide to High-Performance Water Transportation

High-Density Polyethylene (HDPE) pressure pipes have become a critical component in modern water transportation systems, thanks to their superior strength, durability, and versatility. This guide aims to provide an in-depth understanding of HDPE pressure pipes, covering their fundamental properties, advantages, applications, and the reasons why they have emerged as a preferred solution in industries ranging from municipal water supply to industrial fluid management. By exploring the technical characteristics and performance benefits of HDPE pressure pipes, this article will equip readers with the knowledge necessary to choose the ideal piping solution for their specific needs in water transportation systems. Whether you are a professional engineer, a project manager, or someone curious about advanced infrastructure solutions, this guide offers a comprehensive framework for understanding the potential of HDPE pressure pipes.

How do I select the right HDPE pressure pipe for my project?

Understanding pipe dimensions and SDR ratings

To choose the correct HDPE pressure pipe for my application, I need to understand the relationship between pipe measurements and Standard Dimension Ratio (SDR) ratings. The SDR rating which affects the pipe’s pressure bearing capacity, is given by the pipe’s OD over wall thickness ratio.

• Outer Diameter (OD): This is the external dimension of the pipe which essentially determines fitting selection and also determines flow rate.
• Wall Thickness: Increased wall thickness increases the pressure the pipe can withstand while decreasing the internal pipe’s diameter which ultimately have some negative impact on flow rate.
• SDR Value: Lower SDR values, for example, SDR 11, indicate thicker walls with higher pressure tolerance as opposed to SDR 17 with thinner walls intended for lower pressure applications.

Considering these factors will allow me to ensure that the pipe selected is able to sustain the physical stresses when in use, while also managing the desired flow rate. It will also guarantee effeciency with the required strength durable for the task. Pipes with lower SDR values are preferred for higher pressure applications while systems with lower pressure requirements may benefit from pipes with higher SDR values.

Choosing the appropriate pressure rating for your application

Every application comes with certain environmental aspects such as the pressure, temperature, and general conditions which must be taken into utmost consideration when selecting the suitable pressure rating.

• Operating Pressure (PSI or Bar): The mean and peak figure pressures for the system in use must be controlled within the pipe pressure ratings. It is advisable to select a pipe that has an ample margin for pressure surges.
• Pipe Material: The pipes composed of a particular material are often found to have varying levels of durability and pressure resistance. For example, PVC and HDPE pipes tend to have differing pressure resistances on account of its composition as well as structural integrity.
• Standard Dimension Ratio (SDR) or Schedule: Pipes designed for high pressures are SDR rated lower (SDR 11) by definition while those designed for low pressures tend to have higher SDR values (SDR 17). Both steel and metal pipes are SDR-rated but also follow standard schedules like Schedule 40 or Schedule 80.
• Safety Factor: A safety factor is essentially one that takes into consideration all possible error margins from external such as pressure, material quality, and other conditions.
• Temperature: Many materials, especially metals, have been known to be derated by elevated temperatures reducing their pressure capacity.

With this analysis of factors, you can verify that the chosen pipe fulfills the technological and operational criteria, ensuring optimum performance and service life under specified conditions.

Considerations for potable water and other uses

It is essential to focus on the drinking water safety certification when choosing materials for pipes for drinking water applications. These usually include copper, CPVC, or PEX materials that are compliant with NSF/ANSI 61. The material must not be capable of leaching harmful substances and must be chemically stable for changes in temperature and pressure. In addition, ensure that the inner surface of the pipe does not encourage biofilm growth protecting sanitation.

• For Operating Temperature Range check: Validate that materials of the pipe can function appropriately within the anticipated range. The minimum limit for cold water might be 32°F (0°C). On the other hand, hot water may necessitate materials with more than 140°F (60°C) rating.
• Pressure rating: the pipe needs to be able to hold the maximum operational pressure of the system which in many domestic applications can range from 100 to 300 psi depending on what the application is.
• Chemical compatibility: if the system contains aggressive chemicals, check the compatibility charts for the pipe material to ensure there will be no corrosion or degradation.

The control of these factors makes sure that the system works safely and effectively while minimizing and extending maintenance and service life.

What are the benefits of using HDPE pressure pipes?

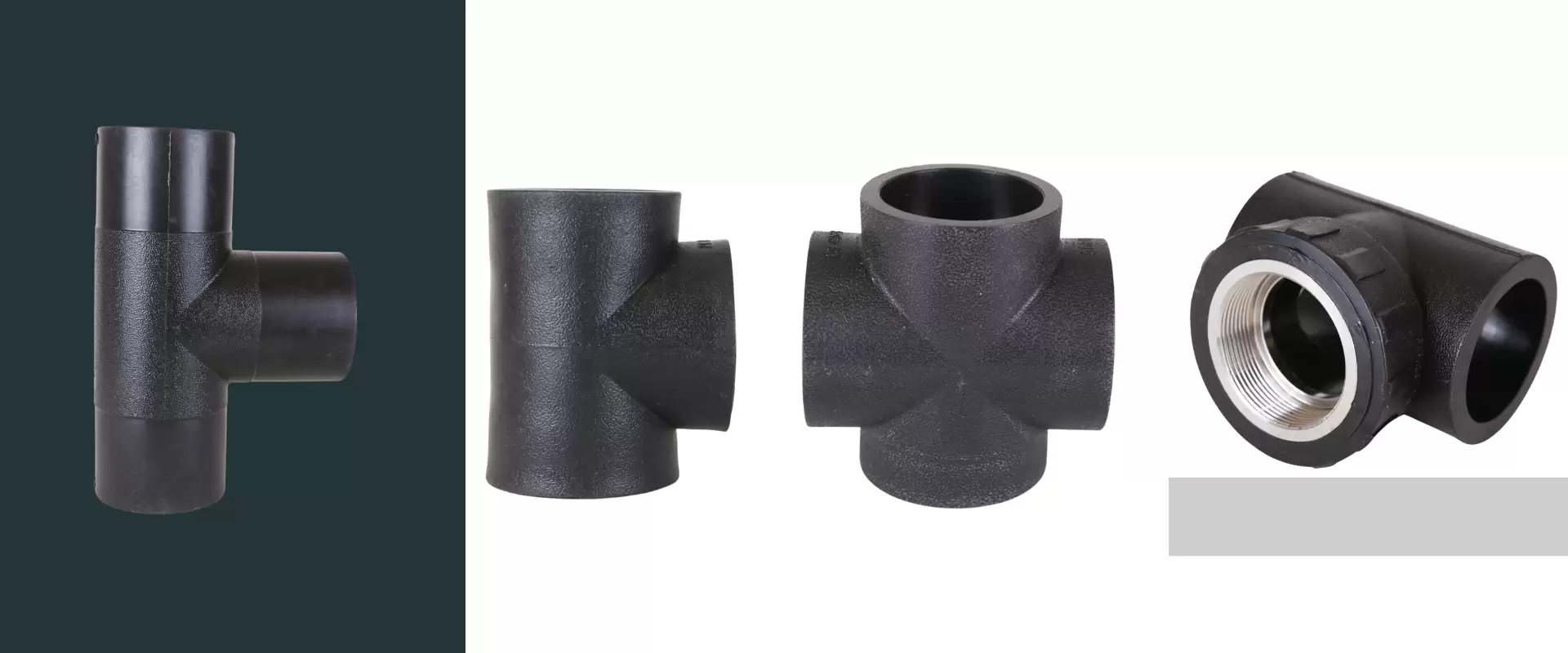

Leak-free joints and fusion techniques

In my opinion, the use of HDPE pressure pipes is beneficial due to their ability to create leak-free joints through advanced fusion techniques. Techniques like butt and electrofusion, as well as socket welding, thermally bond the pipe joints which results in a fused, seamless pipeline. This negates the presence of joints that have mechanical or gasketed connections, thus considerably minimizing the chances of leaks occurring.

• Temperature Range: Fusion techniques are operational in HDPE’s service temperature range which is anywhere from -40 to 140 degrees Fahrenheit (-40 to 60 degrees Celsius). This guarantees that the joints will not break under stress from environmental changes.
• Pressure Ratings: The joints support the rated pressure of the pipe, which is usually over 200 psi, depending on the design of the pipe and its SDR (Standard Dimension Ratio).
• Durability: Fused joints are at least as durable as the pipe material and are impervious to corrosion, fatigue, and chemicals, so there is justification for long-term reliability.

The combination of these fusion techniques leads to the strength required of HDPE systems for high-performance, efficient, and low maintenance tasks.

Durability and resistance to damage

The damage tolerance of HDPE pipes makes them suitable for use in numerous diverse industries. The material properties of HDPE guarantee its resistance to environmental stress fracturing, abrasion, and even mechanical load impacts. These properties are increased with the ability to endure low to high temperatures, which are usually between -40°F to 140°F under standard operating conditions.

• Tensile Strength: Internal HDPE pipes can withstand approximately 3,000 to 4,000 psi of pressure and still exhibit no deformation.
• Impact Resistance: HDPE possesses high ductility and maintains structural integrity under sudden impacts. This is especially true for sub-zero temperatures.
• Chemical Resistance: HDPE sustains its performance in corrosive environments as it is resistant to a wide range of chemicals, acids, bases, and salts.
• Abrasion Resistance: HDPE is wear resistant which means that exposed slurry flow containing particulate or other abrasive materials will result in minimal material loss.

These benefitting technical features validate the claim that HDPE pipes have long, unaided lifespans while still minimizing maintenance costs over decades of operation, all while ensuring system effectiveness. Due to these reasons HDPE is the preferred material for use in rugged applications including municipal water systems, industrial piping, and mining operations.

Flexibility for various installation methods

The toughness of HDPE i.e. High-density polyethylene becomes beneficially flexible with regard to the different installation approaches, especially in highly difficult or unconventional terrains. This flexibility is useful in situations such as where trenching is not feasible or too expensive.

• Bend Radius: Depending on the material grade, HDPE achieves a bend of 20- 25 outer diameters.
• Tensile Strength: HDPE has astounding bent strength ranging between 21 to 37 megapascal. Hence, the pipes will perform remarkably under stress during curvature and installation.
• High Impact Resistance: During installation, HDPE endures stress and deformation without the impact of cracks due to its astounding adaptability.
• Jointing Options: Jointing techniques make sure no leakage as well as strong joints that help even in flexible installations.

These properties of HDPE suggest it is best suited for applications unlike any other using innovative installation techniques, allowing the systems to be overall cost-effective, with great value for durability.

How do I properly install HDPE pressure pipes?

Best practices for HDPE pipe installation

To achieve satisfactory results and durability, the proper procedure for the installation of HDPE pressure pipes is of utmost importance. Observe the following best practices:

• Trench Preparation： The trench should be cut correctly to depth and width proportional to pipe laying and backfilling requirements. The trench base should also be level with no protruding sharp objects to mitigate wall damage.
• Bedding Materials： A granular bedding block with less than 13 mm particles is best, with a minimum 4-inch (100mm) bedding thick layer for protection and load distribution purposes.
• Handling and Storage: Special equipment, like slings or padded hooks that do not scratch or gouge, should be used for pipe movement. They should be stored indoors and kept flat to avoid ultraviolet degradation resulting from prolonged exposure to the sun.
• Pressure Evaluation: To review the integrity of the system after installation, hydrostatic pressure testing should be done. The test pressure should be 1.5 times the rated working pressure of the pipe, but it should not be higher than the maximum operating pressure of the pipe. Before starting the procedure, ensure thermal relaxation is set for 1 hour before beginning.
• Backfilling: Clean and compactable backfill material free of rocks and debris must be used during backfilling. To ensure the compacted material gives adequate support around the pipe, compact it in 6-inch (150mm) lifts. Some installations may need mechanical compaction tools to achieve the required density of the soil.
• Bending and Alignment: The minimum bending radius should not be less than 20-25 times the outer diameter (OD) of the pipe to avoid putting undue strain on the material. For alignment in circular installations, pipe guides, and restraining pipes should be utilized.

Following these best practices will ensure premature failure of the HDPE piping system while increasing its overall efficiency and longevity.

Tools and equipment needed for installation

To achieve a proficient and effective HDPE piping installation the following equipment and tools are recommended:

• Pipe Fusion Machines: Need specific tools for jointing such butt fusion, electrofusion, or socket fusion. Calibrate the machine according to the pipe size and thickness.
• Alignment Clamps: Useful for avoiding joint displacement by having the pipe in the desired position for fusion.
• Pipe Cutters or Saws: Needed to efficiently cut HDPE pipes without causing edge damage. Depending on HDPE cutters specifications are suggested based on the outer diameter (OD) of the pipe.
• Trenching Tools: Equipment, either excavator or trencher for digging trenches to appropriate sizes as per installation requirements.
• Compaction Equipment: A vibratory tamper or compactor for achieving the desired compacted soil density around the pipe is backfilled. In most cases, backfill soil should have 90% Standard Proctor Density.
• Pipe Pullers or Winches: Required for pulling the pipes to the right position especially with longer pipelines or direction drilling works.
• Measuring Devices: Require tools such as tapes, calipers, or lasers for alignment and measuring dimensions during installation.
• Cleaning Materials and Scrapers: Used to clean a pipe surface to be joined by fusion from debris, grease and oxidation.
• Pressure Testing Equipment: Hydrostatic or pneumatic testing kits that check the integrity of the installed system following the manufacturer’s guidelines or industry standards such as ASTM F2164 for hydrostatic testing.

Only qualified personnel may operate the tools, and their application must correspond to the project’s technical details and industry norms for the installation to achieve exemplary results.

Pressure testing and quality control measures

With systems already installed, pressure tests have to be checked along with other quality control checkpoints that should be carried out to guarantee the safety and reliability of the system. A few criteria for hydrostatic testing include:

• Test pressure: ASTM F2164 states that the test pressure should be 1.5 times the operating pressure of the system with a maximum limit of the manufacturer’s allowance
• Test duration: For this segment, the test pressure has to be maintained at a minimum of 30 minutes, however, in some cases, project scope or materials in use specified longer durations additionally.
• Temperature Conditions: As to not distort the materials, testing should occur within the temperature range provided by the manufacturer which falls between 40 to 95 degrees Fahrenheit and 4 to 35 degrees Celsius.
• Leakage Monitoring: During and after the pressure test, all joints and components should be monitored for any visible signs of leakage.

For pneumatic testing, safety measures must be tightened. The risk of sudden failure due to air pressure is much higher. A maximum limit of 50 psi (345 kPa) should be set along with keeping people at a safe distance from the tested equipment.

What are the common applications for HDPE pressure pipes?

Municipal water supply and distribution systems

The use of high-density polyethylene (HDPE) pressure pipes has grown exponentially in recent years in municipal water supply and distribution systems because of their flexibility, corrosion resistance, and long service life. Water supply and distribution systems utilize HDPE’s pressure resistance trait, both internal and external, without compromising water quality.

• Operating Pressure: HDPE can be fabricated in an array of pressure ratings PN6, 10, and 16, with their maximum operating pressure varying from 87 psi (0.6 MPa) to 232 psi (1.6 MPa). The maximum operating pressure for HDPE pipes rests between 87 and 232 psi.
• Tolerance of Temperature: The optimal usage of HDPE pipes is between the temperature of -40 to 60 degrees Celsius or between -40 to 140 degrees Fahrenheit. Material integrity and long-term performance will be hindered when exposed for too long outside this temperature range.
• Hydraulic Performance: The energy loss for efficient water transport is greater than the supplied energy due to the smooth internal surface of HDPE reducing friction losses (low Hazen-Williams C-factor typically near 150).
• Nominal Diameters: The range of diameters for the pipes starts from 20 mm and 0.75 inches to 1600 mm and 63 inches, catering to a wider scope of applications.
• Jointing Systems: HDPE pipes can be seamlessly jointed using heat fusion, electrofusion, or butt welding. This creates no leak monolithic connections rendering them impervious to contamination or leakage.

HDPE is a reliable option owing to its corrosive chemical resistance, flexible ground movements, and proven ecological performance.

Industrial and agricultural uses

Because of their strength, flexibility, and resistance to chemicals and environmental stresses, HDPE pipes are widely used in industrial and agricultural applications.

• Industrial Uses: HDPE pipes are used for the transportation of chemicals, wastewater, and slurries because these pipes can endure harsh and corrosive substances. For instance, HDPE pipes can withstand sulfuric acid as well as alkalis that would usually deteriorate other materials. They are also excellent at withstanding abrasion which makes them suitable for industrial processes involving heavy solid content transportation.
• Agricultural Uses: HDPE pipes are utilized for effective irrigation systems due to their lightweight, easily installed features, and leak-proof jointing systems. They are very useful in subsurface drip irrigation because they provide uniform water distribution. For agriculture purposes, typical pipe diameters are from twenty-five millimeters (smaller setups) to one hundred sixty millimeters or larger (main pipelines). For most systems, the pipes have pressure ratings of six to ten bars. The pipes also have the added benefit of being UV resistant making them durable for outdoor applications.

The facets such as chemical resistance, pressure ratings and even thermal stability play an important role in the utilization of HDPE. As a result, these features ensure cost efficacy along with reliability over a long period of time.

Geothermal and specialized applications

Thanks to their mechanical and thermal characteristics, HDPE pipes find extensive use in geothermal energy systems. Their importance in ground-source heat pump systems is profound, being the pipes that provides the optimal physical systems for the exchange of heat from the ground to the pump and vice versa. These pipes are capable of enduring long-term exposure to wide range of temperatures, and efficiently enduring heating and cooling cycles.

• Thermal Conductance: HDPE pipes have a coefficient of conductivity which is around 0.4 W/m·K which actively transfer heat.
• Pressure Ratings: As pipes class these standard PN6 or PN10 grade pipes, these can endure circulating fluid dynamic loads for a long period.
• Chemical Resistance: HDPE is suitable for use in systems with anti-freeze or saline water circulation due to its non-corrosive nature to substantial chemicals.
• Flexibility and Jointing: Thick wall deformation under pressure coupled with fusion joint construction increases resistance to leakage and mechanical failure during operations of the system.
• Longevity: With an intended life span of over 50 years with normal operating conditions, it ensures the durability to cost and downtime of geothermal systems.

These characteristics illustrate why HDPE is utilized across the industry for geothermal and other particular applications. Its versatility in various operating environments highlights its relevance in the promotion of sustainable energy.

How do HDPE pressure pipes compare to other piping materials?

Comparing HDPE to traditional materials like ductile iron

HDPE pressure pipes have specific advantages over older materials such as ductile iron. Firstly, the corrosion resistance of HDPE is unmatched. It doesn’t rust, unlike ductile iron and requires expensive protective coatings and cathodic protection. This makes it very reliable when used in saline water or areas with aggressive chemicals.

Secondly, HDPE is unmatched when it comes to flexibility and impact resistance. Strong as ductile iron may be, it is rigid and very likely to break upon impact or movement (especially in seismic zones). Unlike ductile iron, HDPE is able to withstand considerable ground shifts and provide significantly enhanced durability.

Moreover, most gaskets and rubber joints do not provide reliable monolithic joints, leading to highly leak prone systems. Fusion jointing with HDPE creates monolithic joints, hence creating a leak free system. Ductile iron joints are mechanical and prone to severe degradation resulting in loss of containment under high-pressure application.

HDPE is not only lightweight, but easier to install as well. Ductile iron piping has far more weight in comparison to HDPE (roughly 2-3 times more) which leads to higher transportation and labor costs during installation. The low weight of HDPE facilitates implementation, particularly in remote or difficult to access locations.

Another important attribute is the longevity of the materails in use. HDPE can be used for over 50 years without significant damage under normal conditions, but ductile iron, due to corrosion and mechanical wear, may need more frequent services or replacements.

Looking at these qualitative and quantitative features and their technical aspects including, but not limited to, resistance to corrosion, flexibility, joint integrity, weight, and durability, it is clear that HDPE pressure pipes outperform others for many modern purposes, especially where long service life and protection of the environment are crucial.

Cost-effectiveness and long-term performance of HDPE pipes

Considering both the investment cost and the expected return, the cost benefits of using HDPE piping are very favorable. Although the material cost for HDPE is around similar to or above some traditional materials, savings are realized during transportation, installation, and maintenance. Due to their lightweight nature, HDPE pipes greatly reduce transportation costs, simplify handling, and result in lower labor costs at the time of installation. Moreover, the use of fusion or mechanical joining methods eliminates firmly connected fittings and provides a leakproof system, which also reduces costs.

• Corrosion Resistance: The absence of metals in the structure of HDPE means it does not corrode or rust. Therefore, incurring any cost for anti-corrosion treatment or replacement is eliminated.
• Flexibility: A higher ductility means that HDPE has greater resistance to fatigue or cracking under shifting loads or thermal expansion, reducing cracked pipes and the need for repair.
• Service Life: The lifespan provided by HDPE pipes exceeds fifty years under standard operating conditions which is far longer than materials more susceptible to wear and tear.
• Abrasion Resistance: Superior resistance to being eroded from the surface compared to other pipe materials which makes them suitable for transferring abrasive fluids or slurries.
• Impact Strength: HDPE offers high durability because it can withstand impacts during handling and operation without fracturing.

As a result of these features, the lifecycle costs have been reduced, making infrastructure projects where longevity, dependability, and limited operational interruptions are required extremely cost-effective and economical when using HDPE pipes.

Reference sources

High-density polyethylene

HDPE pipe

Pipe (fluid conveyance)
