High-Density Polyethylene, or HDPE pipe fusion, is a complex and essential operation where industries from water distribution sectors to gas transportation work and therefore require completely dependable, sealed connections to boot. The guide provides a well-rounded HDPE pipe fusion workshop, looking into everything from its varying methods and advantages to the use of its products in different fields. If you’re either a professional installer, engineer, or project manager, it is crucial that you understand the technicalities that accompany this joining method to execute projects that will survive the act of time and will function efficiently. Let us further delve into HDPE pipe fusion and discover the fundamentals behind it so you will be equipped with all the information to approach any project with confidence and precision.
Benefits of HDPE Pipe Fusion
Durability and Longevity of HDPE Pipes
HDPE pipes have been favored for various industries because of their excellent durability and outstanding longevity. These pipes resist corrosion, which greatly enhances their life span. Unlike metal or concrete pipes, HDPE pipes do not undergo deterioration when exposed to chemicals, aggressive soils, or extreme environmental conditions; rather, they provide effective watering services for decades.
The flexibility and tensile strength of HDPE also contribute to its durability. Flexibility allows HDPE pipes to resist dynamic load, ground movements, external pressure, and other shocks without cracking. High impact resistance ensures these pipes are not damaged during handling, installation, and operation, even in difficult situations such as mining and seismic areas, thereby greatly reducing possible maintenance or repair requirements during the lifespan of the system.
Key Durability Features:
- Built-in UV-resistant stabilizers
- Service life ranging from 50 to 100 years
- Resistance to chemical and environmental stress
- Reduced maintenance requirements
Considering their usage might be extended for decades before installation, they are manufactured with built-in UV-resistant stabilizers to avoid damage from sunlight and promote oxidation degradation. Given proper installation and ongoing maintenance, HDPE pipe systems have a service life ranging from 50 to 100 years, depending on environmental conditions and application design requirements. This extended length of life guarantees their reliable performance with a reduced life cycle cost, which makes them prime contenders in major infrastructure systems.
Leak-Free Connections and Reliability
The capability of HDPE piping systems to provide a leak-free connection is dependent chiefly upon joining methods peculiar to this material, such as heat fusion. Heat fusion involves the melting and fusing of ends of pipes, yielding a homogeneous joint with strength equal to or even greater than that of the pipe material. Unlike conventional mechanical joints, fusion joints require no gaskets or seals, which are usual failure points, causing leaks. This allows HDPE systems to retain their integrity even with fluctuating pressures or unfavorable environmental conditions.
Reliability in HDPE piping systems mostly means more than just leak-proof connections. The material resists chemical corrosion, abrasion, and environmental stress cracking; hence, it works well in a large gamut of applications like water distribution, gas transmission, and industrial processes. On the other hand, the flexible nature of HDPE imparts it resistance to damages caused by ground movements, such as seismic activity or soil settlement, both of which tend to undermine rigid piping systems. All these characteristics make HDPE-based infrastructure more durable and reliable.
Field performances and research have stood testimony to the reliability of HDPE systems for long-term applications. Independent studies and case histories stress their superior performance in curtailing water loss in municipal systems and enhancing safety in gas pipelines. Furthermore, low maintenance requirements exemplify the operational advantages of HDPE systems, making them a preferred choice in critical infrastructure sectors where non-failure is an option.
Cost-Effectiveness Over Time
HDPE pipe systems are renowned for being economical over a long time due to the material’s durability and corrosion resistance, and inherent maintenance. Whenever there is a problem with steel or ductile iron pipes, HDPE pipes stand far less chance of failure, hence the repair and replacement expense is averted. Thus, HDPE pipes are more reliable in the long term, allowing for greater operational interruption and economic life-cycle support to the utilities.
Being the lighter types of pipes, HDPE pipes are readily installed, and so are further economic systems. Initial-phase costs reduced by transportation and labor are saved because of their lightness. In addition, HDPE piping systems ensure fewer joints owing to the availability of long, continuous lengths, thereby reducing the possibilities of leakage incidents, which thus minimizes maintenance costs and maximizes cost benefits.
Economic Benefits:
Independent research evidences the practical savings offered by HDPE systems, especially in systems such as municipal water distribution and gas pipeline networks. As an instance, it is cited that with the use of HDPE in lieu of conventional materials, there can be up to 30% reduction in cost incurred in the construction of the entire system.
Applications of HDPE Pipe Fusion
Construction Industry Uses
HDPE pipe fusion has brought a revolution in the construction industry by providing reliable, durable, and cost-effective solutions for various infrastructure works. Here are five major construction applications where HDPE pipe fusion finds wide applications:
-
1
Water Supply Systems: HDPE pipes are predominantly installed as potable water supply lines, given their resistance to corrosion and chemical leaks. In fact, fused HDPE water supply systems have been reported to last for a service longevity of over 50 years with constant flow rates.
-
2
Sewer and Drainage Systems: The flexibility and leak-free joints offered by HDPE pipes are well-suited for municipal sewer and stormwater drainage systems. Studies reveal that maintenance costs are reduced by 20-40% compared to traditional concrete or steel systems.
-
3
Geothermal Heating and Cooling Systems: Fusion-based HDPE pipes continue to be the first choice in geothermal applications due to their stability in the face of unusually high temperatures and pressures, thus facilitating thermal exchange over long periods. The system efficiency could be uplifted by 30% in heating.
-
4
Electrical Conduit Systems: For the underground electrical and communications cabling, these pipes are an excellent solution for protection against external damage. Since there is less joint work to be done with the HDPE conduits, installation costs drop by approximately 25%.
-
5
Gas Distribution Networks: HDPE fusion pipes are considered by the gas industry to guarantee a secure, leak-proof network. By providing a disappearance of hazards due to fusion, which cannot be rivaled by any other joining system or technique. Case studies show a 60% reduction in long-term system failures with the use of HDPE for gas pipelines.
These 5 applications endorse the eminence visualized by HDPE pipe fusion in construction, thereby creating a position ahead in the minds of engineers and project planners.
Agriculture and Irrigation Systems
Being a crucial component in modern agriculture and irrigation systems, big HDPE pipes offer a durable, economical, and eco-friendly water distribution solution. The following lines and details specify five applications where HDPE pipe fusion comes to the forefront in the agricultural sector:
🌊 Efficient Water Distribution Networks
HDPE pipes give uniform and efficient water distribution across large areas, transforming water wastage in traditional systems by 35%. Being seamless, these joints ensure minimum leakage, making the conservation of water a priority in areas where forceful conservation of water is required.
💧 Drip Irrigation Systems
The fusion of HDPE pipes makes for a sturdy backbone in drip irrigation systems, whereby water must be delivered in very precise and consistent quantities. Studies have indicated that farms that use HDPE-based drip irrigation technology have an uplift of about 20% in crop yields, and also less consumption of water and fertilizers.
🏞️ Subsurface Drainage Systems
HDPE pipes are laid in subsurface drainage systems to save fields from waterlogging. Their high flexibility and excellent corrosion resistance enable the pipe to be laid for over fifty years under normal agricultural conditions.
🚜 Slurry and Fertilizer Transport
HDPE pipe fusion facilitates the safe transport of liquid fertilizer and slurry over long distances. Chemicals resistant to HDPE protect the surface of the pipe against degradation when exposed to reactive chemicals, ensuring the pipes stay high and safe.
🐄 Livestock Watering Systems
A reliable water supply system is critical to grassland farming, whereby HDPE pipes provide water directly to various livestock facilities. The pipes withstand temperature fluctuations and give an uninterrupted water supply in both hot and cold climates, aiding in the good health and productivity of the dosage.
These examples show the adaptability and superiority of HDPE pipe fusion in agriculture and irrigation systems, promoting efficiency and sustainability that bestow immense savings in the long run on farmers and industry professionals.
Gas Distribution Networks
Gas distribution systems require High-Density Polyethylene (HDPE) pipes for their sturdiness, flexible nature, and the ability to perform over a prolonged span. When it comes to corrosion resistance and resistance to chemical reactions and environmental stresses that cause cracking, HDPE pipes are considered superior for transmission, thereby ensuring the safe and efficient delivery of gas. Below are the five coating applications of HDPE pipes used in gas distribution networks:
The applications clearly signify that HDPE pipes make the backbone of modern gas distribution systems, meeting the utmost safety standards while providing cost-effective and environment-friendly solutions for both city and countryside projects.
Best Practices for Optimal Fusion Results
Techniques for Strong and Reliable Joints
To have strong and reliable joints in HDPE systems, the fusion technique must be applied correctly in strict conformity with the industry’s standards and manufacturers’ specifications. Butt fusion is one of the most commonly used methods, and it requires clean pipe surfaces with proper alignment and heating for a molecular-level bond. It is very important for operators to control every aspect of temperature and pressure during the fusion process, for if there are any variations in time, temperature, or pressure, defects such as partial fusions or misalignments may occur.
⚡ Electrofusion Process
The heating elements for electrofusion fittings may be embedded within the fitting, and an electric current then activates them. This technique is used mostly for setting repairs or for joints in tight spaces where butt fusion cannot be carried out. Fusion affecting joint integrity includes surface preparation with oxidation layer removal and accurate alignment before and during fusion.
In order to achieve long-term performance and avoid failure, quality control, such as inspections, residual stress tests, and adherence to standards such as ASTM F2620, must be implemented. Advanced fusion machines with data-logging ability may also help provide data about fusion to help ascertain compliance with technical specifications and improve the reliability of all fusions.
Safety and Efficiency During the Fusion Process
Safety and efficiencies are ensured during the fusion process by the systematic combination of technical aspects, work procedures, and risk mitigation measures. Operators must work as closely as possible with manufacturers’ guidelines or industry standards such as ASTM F2620, since violations could lead to improper alignment, heating, or even pressure application. The presence of a modern fusion machine integrated with automatic monitoring and control further maximizes safety and precision, thereby reducing the chances of human error in selecting fusion and ensuring optimal conditions are always enforced.
The very next crucial factor is ensuring temperature control during the fusion operation, resting on the fact that overheating or underheating undermines joint integrity. Meanwhile, in the presence of modern fusion equipment with real-time temperature data from infrared thermometers or heat mapping sensors, operators can counter-adjust accordingly. Capturing and preserving this data in an automated fashion further guarantees traceability of the fusion operation, where such as temperature, time, and application of force are recorded. Apart from strengthening compliance with technical standards, this measure equally helps with troubleshooting and quality assurance.
Ergonomics related to safety must be part of the design to reduce fatigue and maximize effectiveness at the job site. For this reason, the operator must have the ability to control tools that require little manual handling with automatic flow. Stop accidents should be in place: training emphasizing the handling of devices, safety procedures, and inspection methods. This series of streamlining processes led to operational efficiency and safety in pipe fusion operations.
Common Mistakes to Avoid in HDPE Pipe Fusion
Avoiding common errors while performing HDPE pipe fusion is of utmost importance so that the joint remains intact throughout the system’s life. Some commonly observed mistakes along with their consequences are the following:
❌ Poor Surface Preparation
Failure to adequately clean and scrape the pipe ends results in contaminants getting into the fusion, leading to either weak bonds or incomplete fusions. Dirt, oil, or moisture residues are all considered contamination that could interfere with the polyethylene bonding, thus compromising the weld quality.
🔥 Heating Time Incorrect
This one is a very common problem. Excess heat deformation of beads by deterioration of the polymer enables beads to flow undesirably, whereas a lack of heat does not allow the melting of surfaces to create a strong bonding effect and weakens the joint. It is very important to maintain the heating cycles duly recommended by the manufacturer.
⚖️ Misalignment of Pipes
Misalignment of pipe ends during fusion creates uneven beads in areas and acts as stress sites in the disposal of the system’s performance. With the help of precision alignment, causes beads become uneven in areas acting as stress sites that reduce system performance under pressure. Precision alignment tools should always be used so that accuracy in positioning is maintained.
❄️ Insufficient Cooling Time
Any premature handling while jointly cooling distorts the alignment and lowers the bond strength. Allowing for joint cooling as per prescribed standards, therefore, is necessary for taking care of structural integrity.
🔧 Not Calibrating Equipment
Use of fusion machines that are not properly calibrated or are not serviced regularly may lead to inconsistent heating temperatures and application of pressures. It is very important to test and calibrate equipment from time to time for compliance and uniformity.
🌤️ Ignoring Environmental Conditions
High winds, extreme cold, or direct sunlight from the sun can spoil a fusion condition-interfering with even heating or rapid cooling. One should ensure environmental control or follow the adjustments laid out for the weather.
💡 Best Practice Tip:
Systematically tackling each of these common errors and following industry standards such as ASTM F2620 can do much to increase the success rate of HDPE pipe fusion, thus avoiding expensive system failures in the long term.
Tools and Equipment for HDPE Pipe Fusion
Essential Fusion Machines and Heaters

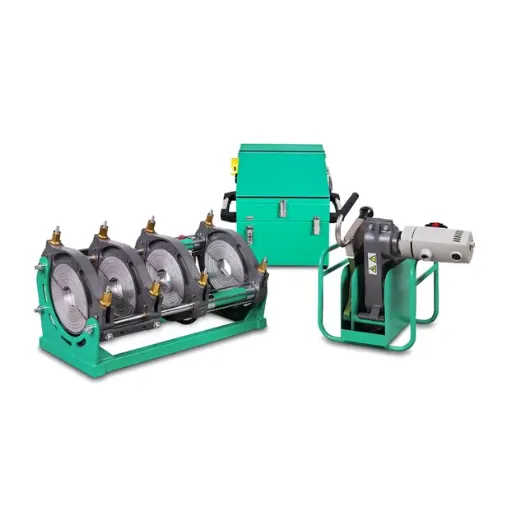

Proper equipment selection is fundamental to the success of HDPE pipe fusion operations, ensuring precision and reliability during the process. Fusion machines are divided into butt fusion, electrofusion, saddle fusion, and socket fusion, each catering to specific joint configurations and pipe dimensions. Butt fusion machines typically include a hydraulic control unit, clamps, trimmers, and a heating plate working in unison to build strong and leak-free joints.
🔧 Essential Equipment Components
- Hydraulic control unit
- Precision clamps and trimmers
- Temperature-regulated heating plates
- Heat coils and induction systems
- Infrared heating methods
The heater is crucial as it ensures even surface temperatures for proper bonding upon fusion. Usually, these heaters are fitted with temperature-regulated plates or heat coils to cordially grant the right amount of heat within the ranges recommended by the manufacturers to the pipe surface. New developments in heating technology involve induction and infrared heating methods that minimize surface contamination and buyer preparation times. Operators must inspect and calibrate these heating devices periodically, following standards such as ISO 21307 or ASTM F2620, because even slight deviations in temperature control can compromise joint integrity.
As with this marriage of critical tools, when combined with a strict observance of the procedural guidelines, operators can rationalize workflows and minimize opportunities for operational mistakes that would otherwise result in high-performance outcomes in a diverse range of HDPE pipe systems.
Alignment Tools and Accessories

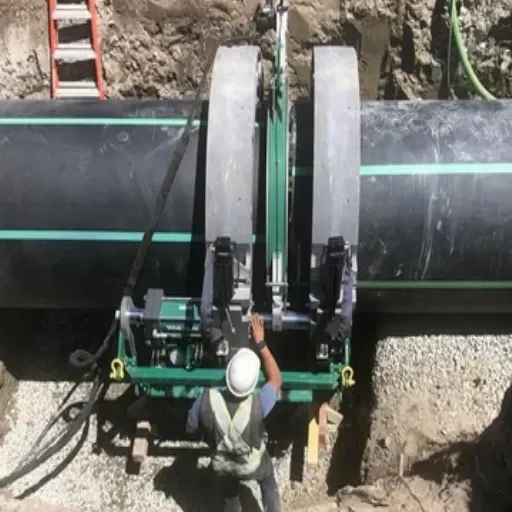

Alignment tools and accessories are crucial components in ensuring the precise installation of HDPE pipe systems. These tools are purpose-engineered to hold a pipe system in proper alignment and keep its interfaces from becoming angularly misaligned so that there is uniform pressure distribution throughout the joints. Common alignment devices are pipe clamps, internal alignment devices, and hydraulic or mechanical fixtures.
High-precision pipe clamps are used to grip the pipes and hold them in position without allowing any movement that could produce weld defects. Internal alignment devices are more suitable for large diameters. They provide internal centering to ensure an even fusion interface. Modern hydraulic fixtures now stand out as one of the preferred systems in modern applications since they provide automated alignment, which increases operator efficiency and accuracy.
📊 Performance Statistics
Technological advancements in alignment systems have incorporated real-time monitoring and adjustment to remove any possibility of errors occurring in the field. According to data from industry standards, stress concentration could be reduced by more than 40% through the use of appropriate alignment, which, therefore, underscores its importance in ensuring the reliability and performance of HDPE systems.
Usually, these tools are made of aluminum or steel materials so they can resist harsh environmental conditions and heavy use. Once on-site operators begin integrating such tools into their workflow, it assures further integrity to the joint, lessening downtime and improving the quality of the installed pipeline for a much longer service life.
Latest Advancements in HDPE Fusion Technology
Automated Fusion Systems
Automated fusion systems are considered significant advances in the high-density polyethylene (HDPE) fusion technology. These systems prioritize precision, minimize human error, and maximize the efficiency of the fusion process. Through the application of sophisticated algorithms and sensors, automated fusion equipment controls the temperature, pressure, and alignment with the utmost precision. These systems also integrate with data-logging platforms, such as the McElroy Datalogger+, allowing for full traceability and industry compliance.
🤖 Dynamic Environmental Adjustments
Perhaps the most interesting features of the new automated systems include dynamic adjustments that account for changing environmental variables. Advanced software updates fusion procedures to counterbalance external factors such as changes in ambient temperature or slight inconsistencies in pipe materials, thereby assuring a uniform level of fusion quality.
These systems also have wireless data capabilities; such features enable the transmission of data between the machine and the central monitoring platform effortlessly. The relentless advancement of automated fusion technology is proof of its prominence in the landscape of present-day pipeline construction and maintenance. The deployment of smart solutions and analytics gives the solutions the ability to reduce operational risk, shorten downtime, and enhance productivity; thereby, addressing the burgeoning need globally for infrastructure projects.
Improved Safety Features in Modern Equipment
Modern machinery has seen advancements incorporating cutting-edge safety features to ensure operator security and efficient operations. Some primary improvements involve fail-safe systems that stop action automatically in the case of abnormal conditions. These are set up either with advanced sensors or with real-time monitoring so that hazards can be detected rapidly, for example, overheating, overpressure, or equipment malfunction. By acting preemptively, these systems minimize the chances of accidents, thus protecting personnel and also reducing downtime.
Designs following modern ergonomic principles are now a given in machine making. The idea is to build on existing benefits supporting the good health of operators: easy control methods, low vibration, and sound-dampening technologies. Other than enhancing comfort, lowering noise and vibration levels also reduces fatigue, another major factor leading to accidents across the workplace. As such, safety measures integrated into the design are no longer treated as an afterthought but are integrated into the machinery’s operation.
🛡️ Safety Systems
Advanced sensors with real-time hazard detection
👨💼 Ergonomics
Low vibration and sound-dampening technologies
🎓 Training
Virtual reality simulation modules
Another major area of improvement resides in the integration of training and simulation modules with modern equipment. Virtual training systems allow one to interactively practice complex procedures in a hazard-free environment so that they will be ready to face real-life situations. Working in combination, modern equipment sets a new benchmark for safety in industrial operation, combining itself with smart technology, ergonomic design, and exhaustive training packs to address the precision and reliability required by the present as well as the future.
Frequently Asked Questions (FAQ)
References
- Experimentation and Optimization of HDPE Pipe Electro Fusion and Butt Fusion Welding Processes
Published by Elsevier ScienceDirect
This article deals with various welding facilities and techniques for HDPE pipe fusion. - A Preliminary Evaluation of NDE Methods on the Inspection of HDPE Butt Fusion Piping Joints for Lack of Fusion
Published by ASME
This paper discusses techniques for inspecting HDPE butt fusion joints. - Fracture of a Saddle Fusion (Weld) Joint in High-Density Polyethylene (HDPE) Pipe
Published on ScienceDirect
This study examines the reasons for the fracture of the fusion weld joints of HDPE pipes. - Use of Pattern Search and Genetic Algorithms for the Optimal Design of HDPE Pipe Joint Profiles and Strength in the Butt Fusion Welding Process
Published by MDPI
This study focuses on the butt fusion welding process optimization of HDPE pipes.
Ready to Implement HDPE Pipe Fusion?
With this comprehensive guide, you now have the knowledge and best practices needed to successfully execute HDPE pipe fusion projects. Remember to follow industry standards, use proper equipment, and prioritize safety throughout the process.
