Polyethylene (PE) pipe fittings have revolutionized modern piping systems, offering unparalleled durability, flexibility, and efficiency across a wide range of industries. Whether used in water distribution, gas pipelines, irrigation networks, or industrial applications, these fittings—particularly those made from High-Density Polyethylene (HDPE)—have become the preferred choice due to their robust performance and cost-effectiveness.
This comprehensive guide will explore the key types and applications of PE pipe fittings, highlighting their benefits in ensuring reliable and sustainable infrastructure. If you’re looking to understand how HDPE and other polyethylene pipes can enhance operational efficiency while reducing long-term costs, this article will equip you with the necessary insights.
Understanding HDPE Pipe Fittings
What are HDPE Pipe Fittings?
HDPE (High-Density Polyethylene) pipe fittings are essential components used in joining, diverting, or managing HDPE piping systems to achieve the desired piping layout. They are manufactured from high-density polyethylene material to provide durability, flexibility, and corrosion resistance.
Key Features of HDPE Pipe Fittings:
- Leak-proof connections: Heat-fused connections eliminate leakage possibilities
- Chemical resistance: Resists chemical attacks, abrasions, and environmental factors
- Versatile installation: Can be installed above or beneath the ground
- Lightweight yet strong: Easy handling without compromising performance
- Cost-effective: Long service life with minimal maintenance requirements
The most common HDPE fittings include couplers, elbows, tees, reducers, and flanges that serve different piping configurations and applications. Unlike other fittings, HDPE pipe fittings are adaptable to many systems, such as water distribution, gas transport, and industrial conveyances.

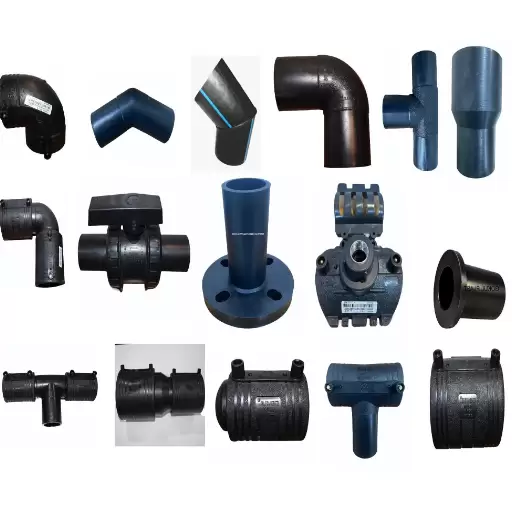

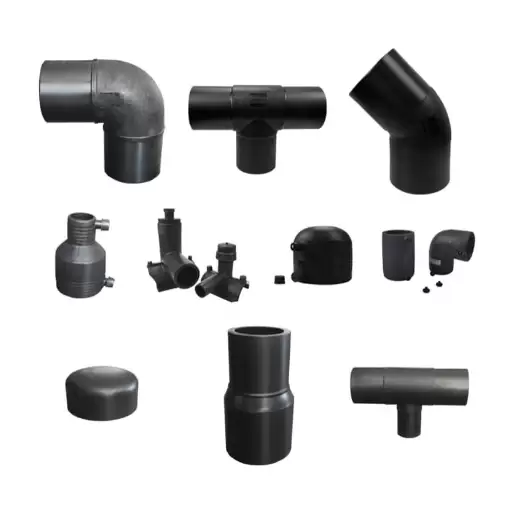

Types of HDPE Fittings
HDPE fittings establish connections, redirect flows, or manage flow within HDPE piping systems. The fittings come in several configurations, each designed for specific functional and structural requirements:
- Butt Fusion Fittings: Utilized for permanent, seamless joints by heating pipe ends and pressing them together. Known for superior strength and consistency, typically used in high-pressure applications. Examples include elbows, tees, and reducers.
- Electrofusion Fittings: Feature internal resistance wires that heat when energized, fusing with the pipe. Used when precise and reliable joining is required, especially where movement, flexibility, or limited access is expected.
- Compression Fittings: Mechanical devices that secure pipes by compressing a sealing ring around them. Allow for quick installation without special tools, ideal for temporary or maintenance applications.
- Stub Ends and Flange Adaptors: Connect HDPE pipes to metal flanges or other pipe systems. Generally used where dismantling or maintenance procedures are required, such as in water treatment and industrial plants.
- Fabricated Fittings: Custom-fitted for particular system configurations. Produced by extrusion and assembly of HDPE materials into complex shapes for specific operating requirements.
Applications of HDPE Pipe Fittings
Due to their versatility, HDPE pipe fittings are used across various industries. Here are the primary applications:
1. Water Supply and Distribution Systems
HDPE pipe fittings find extensive usage in municipal and domestic water distribution programs. Their resistance to pressure surges and leak-proof joints provides a reliable water transportation infrastructure.
2. Sewage and Wastewater Treatment
Designed for high-velocity, corrosive wastewater flows. Frequently installed in urban sewer systems, industrial effluents, and drainage systems.
3. Natural Gas and Oil Transport
Extensively used for natural gas and oil transportation due to impermeability and high-pressure tolerance. Much lighter than steel systems, making assembly easier.
4. Irrigation and Agricultural Applications
Essential for modern irrigation systems, delivering water efficiently to crops while preventing waste. UV resistance ensures long-term outdoor performance.
5. Telecommunication and Electrical Conduits
Protect electrical wires and communication cables. Flexibility and tensile strength enable trenchless installation methods.

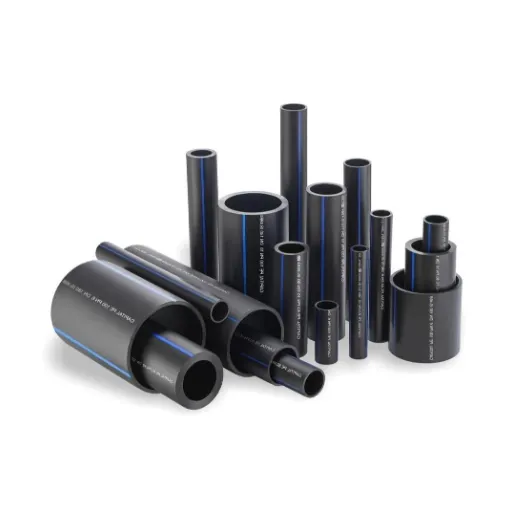

Polyethylene Pipe: An Overview
What is Polyethylene Pipe?
Polyethylene pipes are versatile thermoplastic pipes valued for flexibility, durability, and cost-efficiency. Made using HDPE or MDPE materials, they achieve excellent chemical resistance, flexibility, and impact toughness. Primary applications include:
- Water distribution systems
- Gas pipelines
- Sewage systems
- Industrial pipelines
Benefits of Using Polyethylene Pipe
- Durability and Long Service Life: PE pipes offer an assured life of more than 50 years under normal operating conditions. Resistance to environmental stress cracking and corrosion ensures long-term reliability.
- Corrosion and Chemical Resistance: Unlike metal pipes, polyethylene pipes don’t react with substances, causing rusting, scaling, or biological growth. Particularly important for agriculture and mining industries.
- Flexibility and Impact Resistance: High flexibility makes them resistant to breaking under pressure or ground movement. Maintains integrity even under extreme temperatures.
- Easy Handling and Installation: Much lighter than conventional counterparts. Modern welding techniques like butt fusion offer seamless joining capabilities.
- Environmental Sustainability: Recyclable with energy-efficient manufacturing processes. Contribute to energy conservation in heating/cooling systems with low maintenance requirements.
Comparison of HDPE and Other Pipe Materials
| Aspect | HDPE | PVC | Ductile Iron | Steel | Concrete |
|---|---|---|---|---|---|
| Flexibility | High | Low | Moderate | Low | None |
| Strength | Medium | Medium | High | Very High | High |
| Longevity | High | Medium | Very High | High | High |
| Affordability | Medium | High | Low | Very Low | Medium |
| UV Stability | Excellent | Poor | Excellent | Excellent | Excellent |
| Rust Resistance | Yes | Yes | Yes | No | Yes |
| Ease of Setup | Easy | Easy | Moderate | Hard | Hard |
| Service Life | 50-100 years | 50 years | 100+ years | 50-100 years | 50-100 years |
| Sustainability | Recyclable | Recyclable | Recyclable | Limited | Limited |
Installation Methods for PE Pipe Fittings
Step-by-Step Installation Process
1Preparation and Materials: Ensure all PE pipe fittings, tools, and equipment are available. Materials should comply with project specifications.
2Inspect and Prepare Pipe Ends: Check pipe ends for dirt or damage. Cut away irregularities, ensuring square ends using proper pipe cutters.
3Cleaning and Surface Preparation: Clean all pipe ends and fittings, removing dust, grease, or contaminants. Use suitable cleaning agents for fusion-type fittings.
4Alignment of Pipes and Fittings: Maintain proper alignment using alignment clamps or tools. Misalignment can cause long-term joint failure.
5Pressure Testing: Conduct hydrostatic or pneumatic testing to verify system integrity and leak-tightness. Follow industry standards for test duration and pressure.
6Final Inspection and Documentation: Perform a thorough inspection, ensuring proper connections. Document the installation process and test results for future reference.
Common Tools and Equipment Needed
- Pipe Cutters or Saws: Ensure clean, straight cuts on polyethylene pipes
- Deburring Tools: Remove sharp edges or burrs for proper sealing
- Pipe Reamers: Calibrate and prepare pipe ends for proper alignment
- Heat Fusion Machines: Maintain precise temperature and pressure for durable joints
- Pipe Aligners and Clamps: Hold pipes in place during the bonding process
- Torque Wrenches: Ensure proper tightening of mechanical fittings
- Inspection Tools: Calipers, tape measures, and levels for specification compliance
- Safety Equipment: Protective gear including gloves, safety glasses, and protective clothing
Safety Precautions During Installation
Essential Safety Measures:
- Use proper PPE, including ANSI-rated safety glasses, insulated gloves, and steel-toed boots
- Complete job site risk assessments before starting installation
- Handle fusion equipment carefully due to high temperature hazards
- Keep heat fusion machines on stable, non-combustible platforms
- Follow OSHA-compliant trenching methods if excavation is required
- Maintain communication between team members during complex operations
Maintenance and Longevity of PE Pipe Fittings
Best Practices for Maintaining HDPE Fittings
To guarantee durability and efficiency of HDPE fittings, implement a planned maintenance program:
- Regular Inspections: Schedule interval inspections for wear, stress cracks, or deformation, especially in high-pressure environments
- Non-Destructive Testing: Use ultrasonic testing for internal inspection when required
- Proper Cleaning: Use compatible solvents or mild detergents to avoid chemical reactions
- Condition Monitoring: Check pressure and temperature to stay within the manufacturer’s limits
- Proper Storage: Keep fittings away from direct sunlight and stack properly to prevent damage
- Modern Monitoring: Consider IoT-enabled sensors for real-time performance data
When to Replace Pipe Fittings
Replace fittings when these indicators are present:
- Repeated Leakages: Indicates compromised structural integrity
- Performance Inefficiency: Pressure drops or inability to sustain operating pressure
- Age Considerations: Follow manufacturer recommendations for expected service life
- Advanced Testing Results: Use ultrasonic or hydrostatic testing to verify aging component integrity

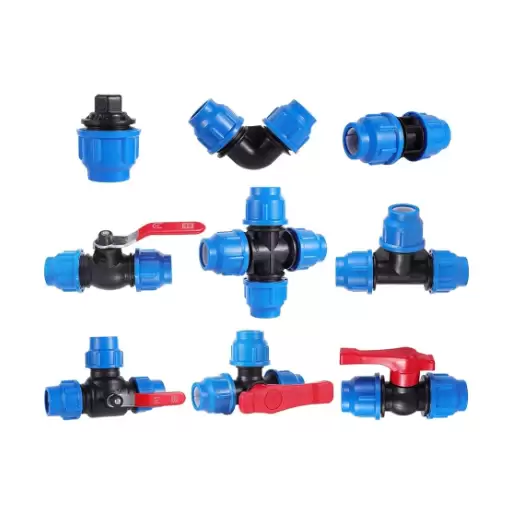

Compression and Insert Fittings in PE Applications

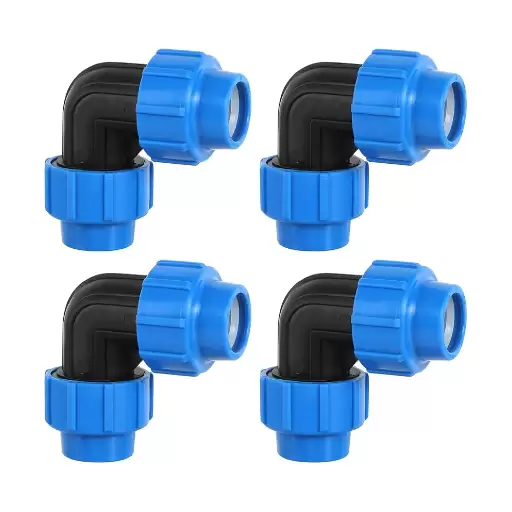

What are Compression Fittings?
Compression fittings are mechanical devices for joining pipes in high-pressure systems. They consist of a compression nut, ferrule (or olive), and compression-ferrule seat. The working principle involves tightening the compression nut to squeeze the ferrule onto the pipe, forming a strong, reliable connection.
Key Advantages:
- No soldering, welding, or special tools required
- Suitable for flexible installation needs
- Wide applications in water distribution, gas pipelines, and chemical transportation
- Available in various materials: brass, stainless steel, or plastic
Advantages of Using Insert Fittings
- Easy Installation: No special tools required, reducing labor costs and assembly time
- Leak Resistance: Barbed configuration with hose clamps ensures secure, tight connections
- Compatibility: Works with various materials, including PE, PB, and PVC piping
- Durability: Made from corrosion-resistant materials like HDPE, brass, or stainless steel
- Cost-Effectiveness: Generally cheaper than other fitting types with long-term cost savings
Frequently Asked Questions (FAQ)
References
- University of Florida Digital Collections: Fittings and Connections for Flexible Polyethylene Pipe Used in Microirrigation Systems
- Texas A&M University Facilities: Design Standard – Underground Piping Installations (covers PE-RT pipes and fittings, HDB values, and ASTM compliance)
- IMTI (Industrial Management Training Institute): Online Plumbing Module 02106 Plastic Pipe and Fittings
